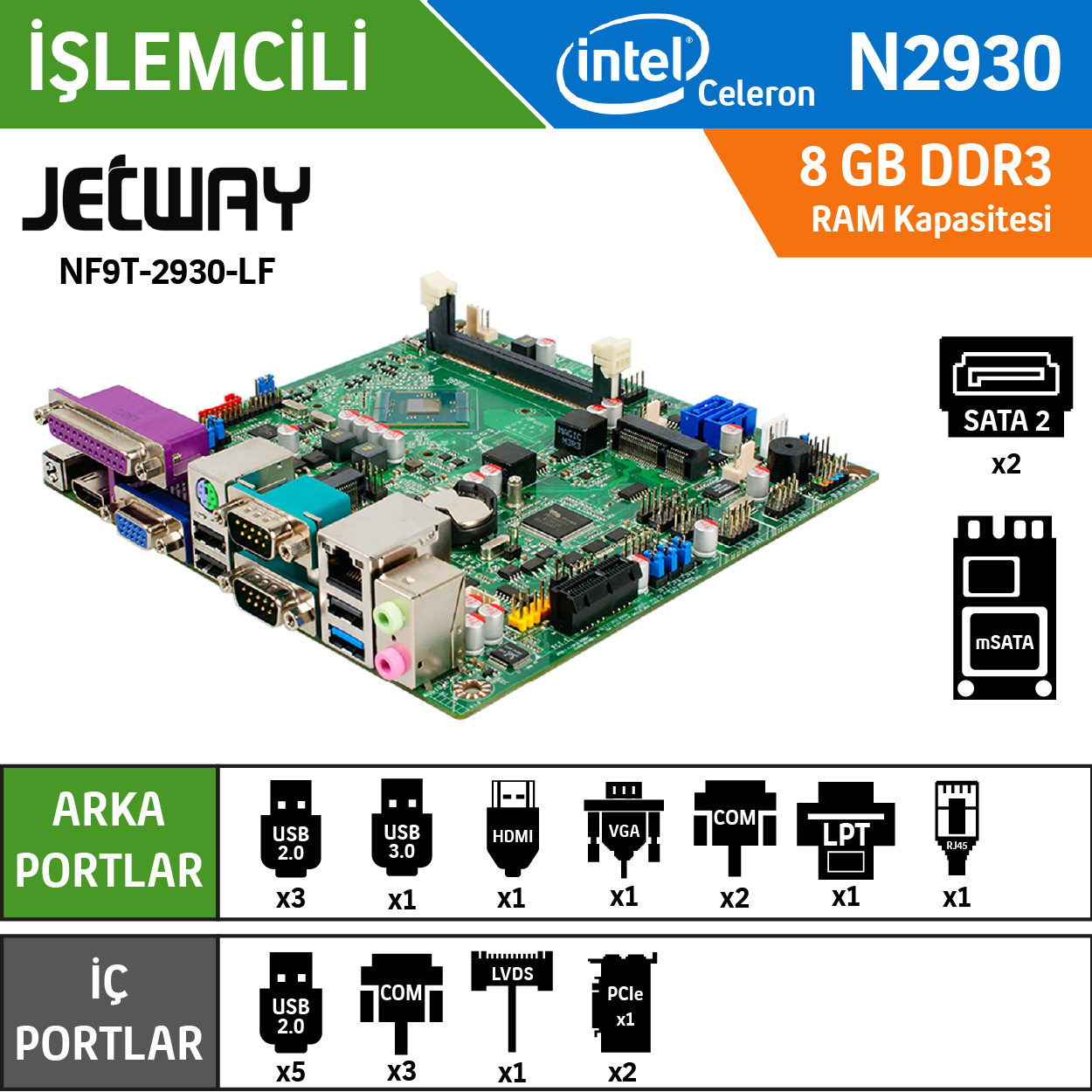

Jetway NF9T-2930-LF Intel Celeron N2930 Fansız Endüstriyel Mini ITX Anakart

 Form Factor

Dimensions

– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

 Processor System

CPU

– Intel® Bay Trail N2930 SoC Processor

Core Number

– 4

Max Speed

– 2.16GHz

L2 Cache

– 2MB

Chipset

– SoC

BIOS

– AMI 64Mb Flash ROM

 Expansion Slot

Mini-PCIe

– 1 (half size)

mSATA

– 1 (full size)

PCIe

– 1 (x1)

 Memory

Technology

– Dual Channel DDR3L 1333MHz SDRAM

Max.

– 8GB

Socket

– 1 * SO-DIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

VGA

– 1 (Supports Max. resolution 1920 * 1200@60Hz)

LVDS

– 1 (Dual Channel 24‐bit, Max. resolution 1920 * 1200@60Hz)

HDMI

– 1 (Supports HDMI 1.4a, Max. resolution 1920 * 1200@60Hz)

MultiDisplay

– Dual Displays

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– Intel 82583V GbE

Connector

– 1 * RJ45

 SATA

Max Data Transfer Rate

– 2 * SATAII (3.0Gb/s)

 Rear I/O

VGA

– 1

HDMI

– 1

Ethernet

– 1

USB

– 4 (1 * USB 3.0, 3 * USB 2.0)

Audio

– 2 (MIC-in, Line-out)

Parallel

– 1

Serial

– 1 * RS232, 1 x RS232/422/485. with 5V/12V selectable header

PS/2

– 1

DC-input

– 1

 Internal Connector

USB

– 5

LVDS / inverter

– 1/1

Serial

– 3 (3 * RS232 with 5V/12V selectable header)

SATA

–  2 * SATAII (3.0Gb/s)

mPCIe

– 1 (half size)

mSATA

– 1 (shared SATA2)

M.2

– 0

GPIO

– 4 in / 4 out

Chassis intrusion

– 1

Audio Header

– 1 (W/3W Amp.)

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments,0,1,2…255sec/min

 Power Requirements

Input PWR

– 12V DC-in (2-pin PWR Con)

Power On

AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, RoHS, REACH

 Environment

Temperature

– Operating: -20°C ~ 70°C
– Storage: -40°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

Warranty

– 2 Years Limited Warranty
