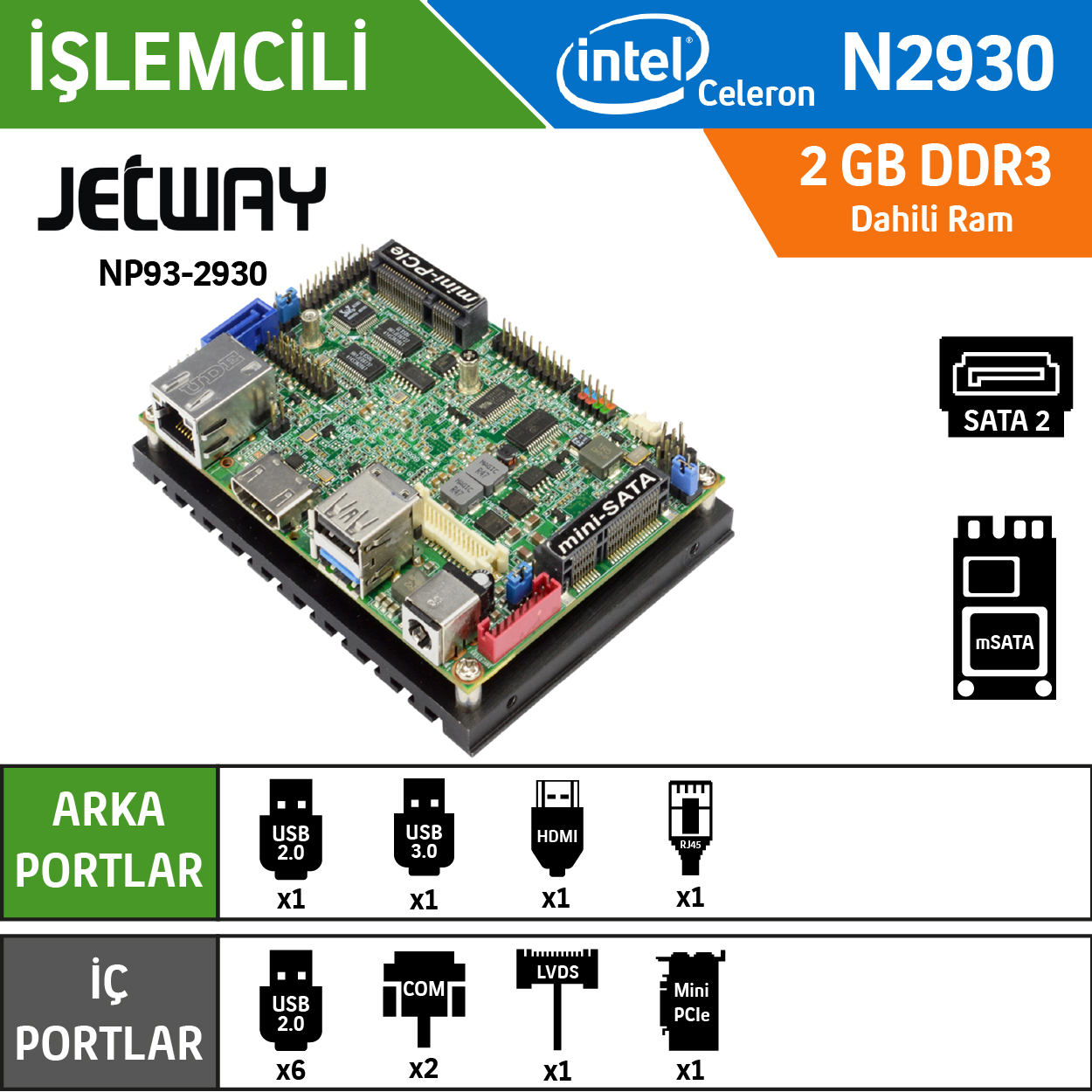

Jetway NP93-2930 Intel Celeron N2930 Fansız Endüstriyel Pico ITX Anakart (Without Audio)

Model

– JNP93-2930 (N2930) Quad Core 1.83GHz SoC (TDP 7.5W)
– JNP93-2807 (N2807) Dual Core 1.58GHz SoC (TDP 4.3W)

Form Factor

– PICO-ITX (100 * 72mm)

Processor System

– Intel® Bay Trail-M SoC Processor
– UEFI BIOS

Memory

– 2GB onboard DDR3L 1333MHz Single Channel

Storage

– 1* SATAII (3 Gb/s)
– 1* mSATA (full size)

Expansion Slot

– 1* Mini-PCIe (half size)

Ethernet

– 1* Realtek RTL8111H GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* VGA (Option with HDMI, Max Resolution: 1920×1200@60Hz)
– 1* HDMI (Option with VGA, Max Resolution: 1920×1200@60Hz)
– 1* 24-bits Dual channel LVDS (Max Resolution: 1920×1200@60Hz)
– Support Dual Displays

Audio

– HD audio: Realtek ALC888S

Internal I/O

– 6* USB2.0
– 1* SATAII
– 1* LVDS
– 2* COM (one support RS232/422/485 with 5V/12V selectable header)
– 1* Audio Header
– 1* AT mode

External I/O

– 1* RJ45
– 1* USB 3.0
– 1* USB 2.0
– 1* VGA (option with HDMI)
– 1* HDMI (option with VGA)
– 12V DC-in

Power

DC-IN 12~28V, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: -20°C ~ 60°C
– Storage: -40°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Win7 SP1 32-bit, Win7 SP1 64-bit, Win8 32-bit, Win8 64-bit, Win8.1 32-bit, Win8.1 64-bit, Win10 32-bit, Win10 64-bit, Win 10 IoT Enterprise 64-bit, POSready 7 32bit, POSready 7 64bit, WE Standard 7 SP1 32-bit, WE Standard 7 SP1 64-bit, WE Standard 8 32-bit, WE Standard 8 64-bit, CentOS (Version 6.5), Debian (Version 7.6), Fedora workstation (Version 20), openSUSE (Version 13.1), Ubuntu workstation (Version 14.04), pfSense (Version 2.2), RedHat Enterprise (Version 7.0), Android (Version 4.4.2_r1-ia2)

Warranty

– 2 Years Limited Warranty
