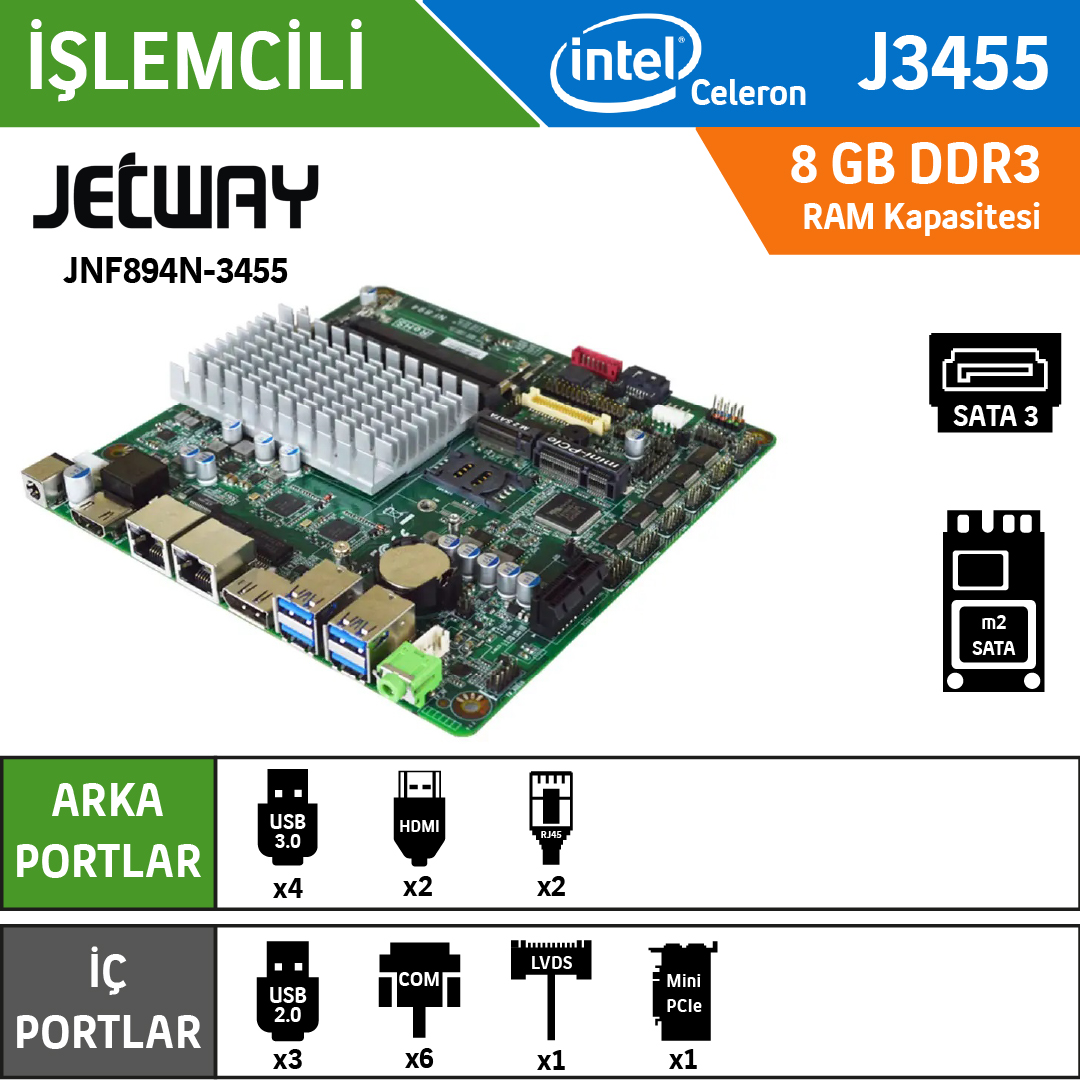

Jetway JNF894N-3455 Intel Celeron N3455 Fansız Endüstriyel Mini ITX Anakart

Model

– JNF894N-3455 (Default)
– JNF894N32-3455 (32GB eMMC onboard)

Form Factor

– Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

Processor System

– Intel® Apollo Lake SoC Processor
– Intel J3455 SoC chipset
– AMI Flash ROM BIOS

Expansion Slot

– 1* full size Mini PCIe
– 1 * PCIe x1
– 1* SIM card slot

Memory

– 2* Dual CH DDR3L 1866MHz SDRAM up to 8GB

Graphics

– Intel® HD Graphics, shared memory
– 1* LVDS (Max. 1920 x 1080@60Hz resolution) (Selectable with eDP, not working while using LVDS)
– 1* eDP 1.3 (Max. 4096 x 2160@60Hz resolution) (Selectable with LVDS, not working while using eDP)
– 2* HDMI 1.4 (Max. Resolution: 3840 x 2160@30Hz) (one option with DP, Default HDMI)
– 1* DP1.2 (Max. Resolution: 4096 x 2160@60Hz) (option with HDMI)
– Support Triple Displays

Ethernet

– 2* Intel i211-AT GbE

Audio

– 2 channel HD audio: Realtek ALC888S

Storage

– 1* SATAIII (6.0Gb/s)
– 32GB (option. If use Win 10 OS, we recommend the eMMC is use for OS boot up purpose)
– 1* M.2 (M-key, 2242/2280) for SATA interface

Rear I/O

– 2* HDMI (default)
– 1* DP (option with one HDMI)
– 2* RJ45
– 4* USB 3.0
– Line-out
– 1* DC-in

Internal I/O

– 3* USB2.0
– 1* PS/2
– 1* LVDS/inverter
– 1* eDP
– 6* COM (COM1 support RS232/422/485 w/ power
– 1* SATAIII (6.0Gb/s)
– 1* Mini PCIe (full size)
– 1* M.2 (M-key, 2242/2280)
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS / I2C
– 1* TPM (onboard option)

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

9~36V DC-in
AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C (with 0.7m/s air flow)
– Storage: -20°C ~ 85°C
– eMMC: 0°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty
