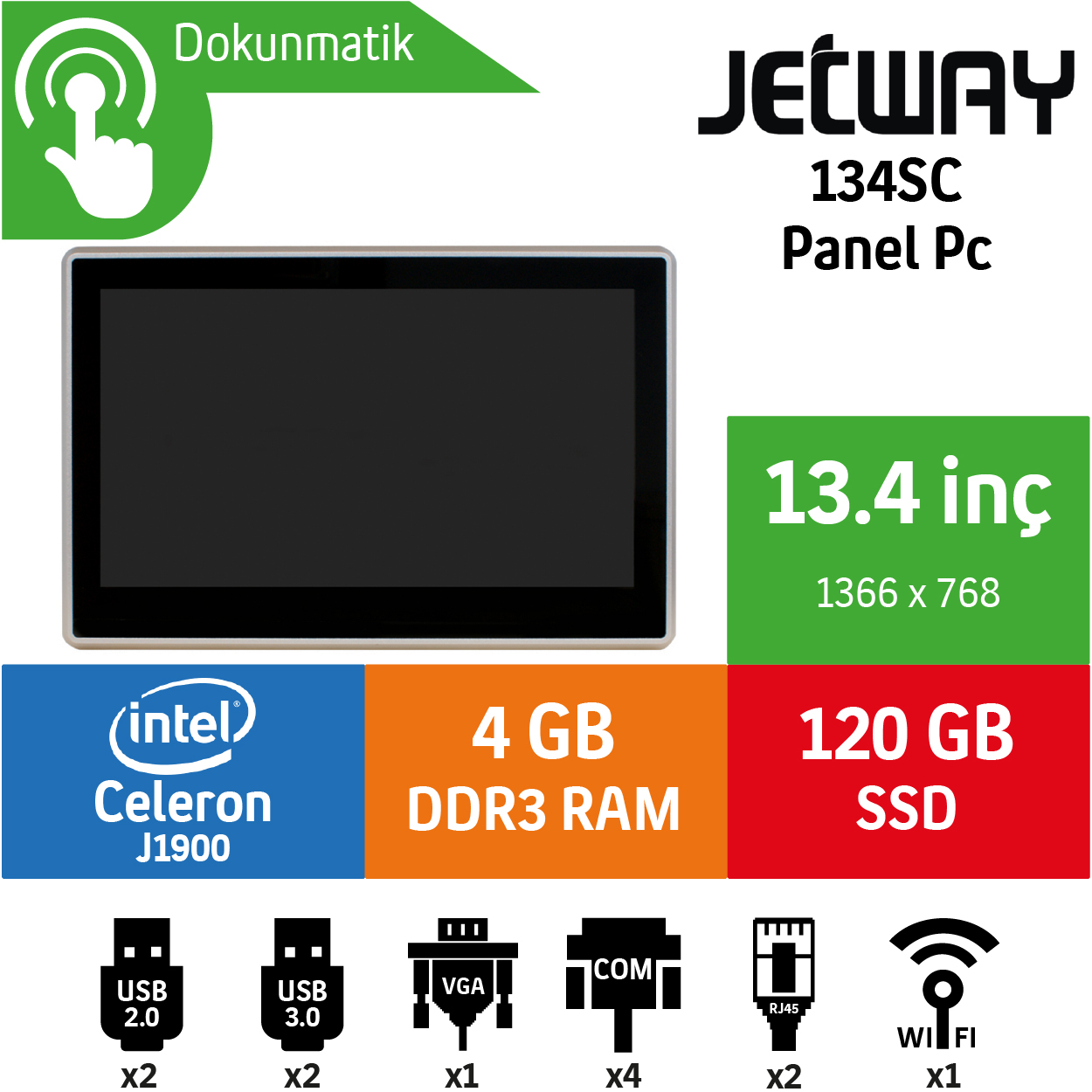

Jetway 134SC Intel Celeron J1900 4GB 120GB SSD Freedos 13.4" Endüstriyel Panel Pc

isplay

– IP65, NEMA 4 rugged protection, Full planar metal border
– 13.4″ With LED Backlight
– 220 nits Brightness (cd/m²)
– 262K display color
– 1366 x 768 @ 60Hz resolution
– 90°/65° viewing angle (H/V)
– 0.17925 x 0.17925 mm pixel pitch
– 16:9 aspect ratio
– 500:1 contrast ratio
– 11ms response time

Touch Screen

– Projected capacitive type
– 340 x 200.00mm ±0.3mm active range
– Transparency ≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)
– Glass haze value ≦ 3%

Case

– Aluminum panel
– Iron case
– Silver + Black color
– Spray paint coating requirement

Main System

– Intel® Bay Trail-D J1900 2.0GHz/QC processor
– Onboard DDR3L 1333MHz DRAM 4GB
– 64MB SPI Flash ROM BIOS
– Watchdog Timer: 256 levels, 0~255 sec.
– OS Support: Windows 7 / 8.1 / 10 / Linux (Option)

Expansion

– 1* Mini PCIe for WIFI or 3G/4G

Storage

– 1* SATA
– 1* M.2 M-key (2242/2260/2280, SATA Interface)

I/O Connector

– 2* USB3.0
– 2* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* VGA
– 2* RJ45 (Intel I211AT GbE)
– 1* Lockable 9~28V DC jack
– 1* Power button

Power Input

– 9~28V DC-in
– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse

Power Consumption

– 20W

Dimensions

– 347.42 * 228 * 56.60mm

Compliance

– CE, FCC, IP65 (Front)

Safety

– Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: : -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: : -10°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~ 85°C
