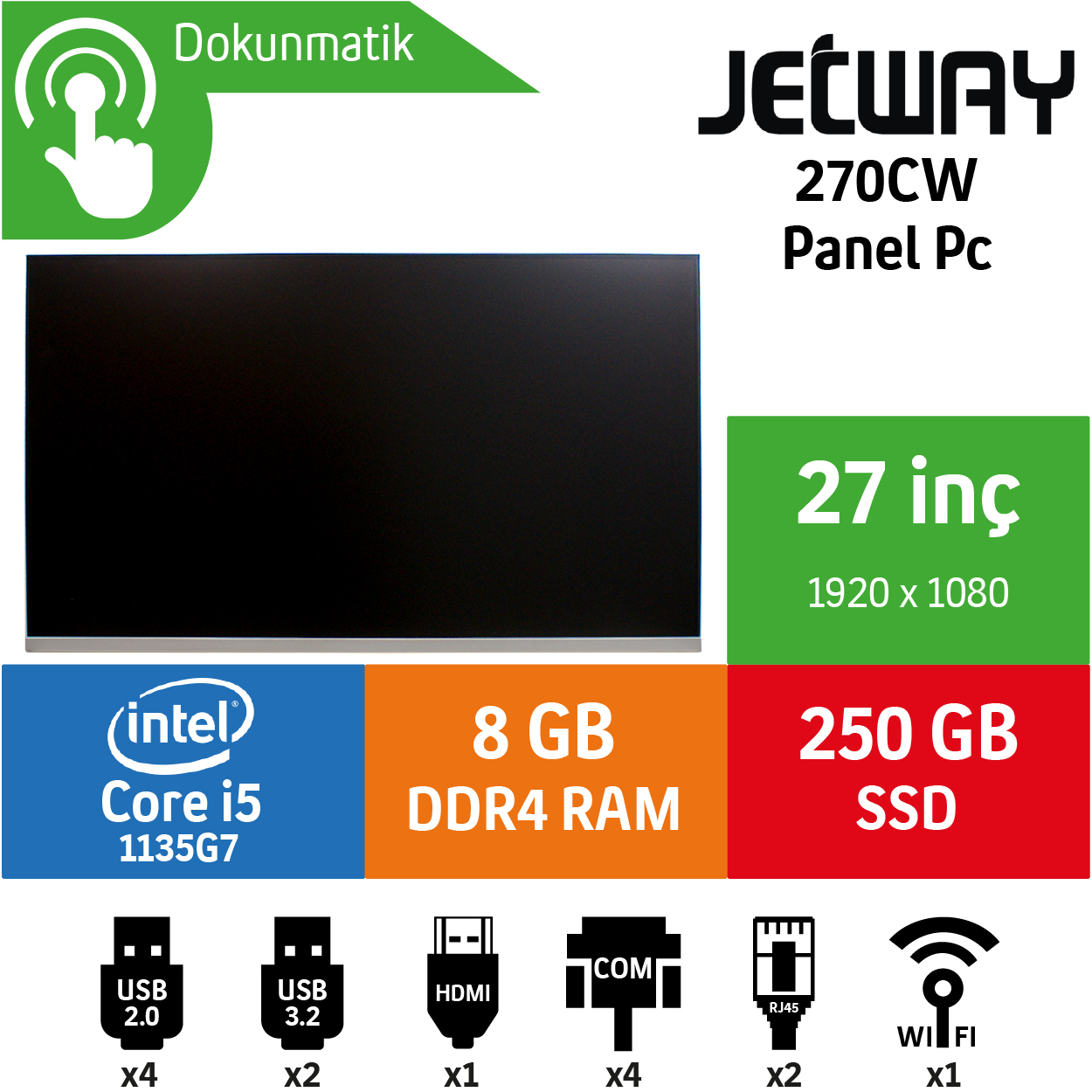

Jetway 270CW Intel Core i5 1135G7 8GB 256GB SSD Freedos 27" Endüstriyel Panel Pc

Display

– Rugged protection, metal front bezel
– 27.0″ With LED Backlight
– 300 nits
– 16.7m display color
– 1920 x 1080 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.1038 x 0.1038mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 13ms response time

Touch Screen

– Projected capacitive type (LG in-cell Touch)
– 597.888 x 336.312mm ±0.2mm active range
– Surface Hardness ≧3H (JIS-5400)
– Support High Touch Performance
– Support Strengthened Polarizer for in-TOUCH
– Support High Picture Quality
– Support Low Reflection / Deep Black
– Support No deterioration of PQ caused by TOUCH Film
– Support Low color Shift
– Support Stable Touch without Flash

Case

– Aluminum panel
– Iron case
– White color
– Spray paint coating requirement

Main System

– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/11, Linux

Storage

– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)

Expansion

– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)

I/O Connector

– 2* USB3.2 (Gen. 1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button

Power Input

– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse

Power Consumption

– 48W

Dimensions

– 611.20 x 359.18 x 59.00mm

Compliance

– CE, FCC, Option

Safety

– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: : -10°C ~ 50°C
– Storage: -20°C ~ 70°C
