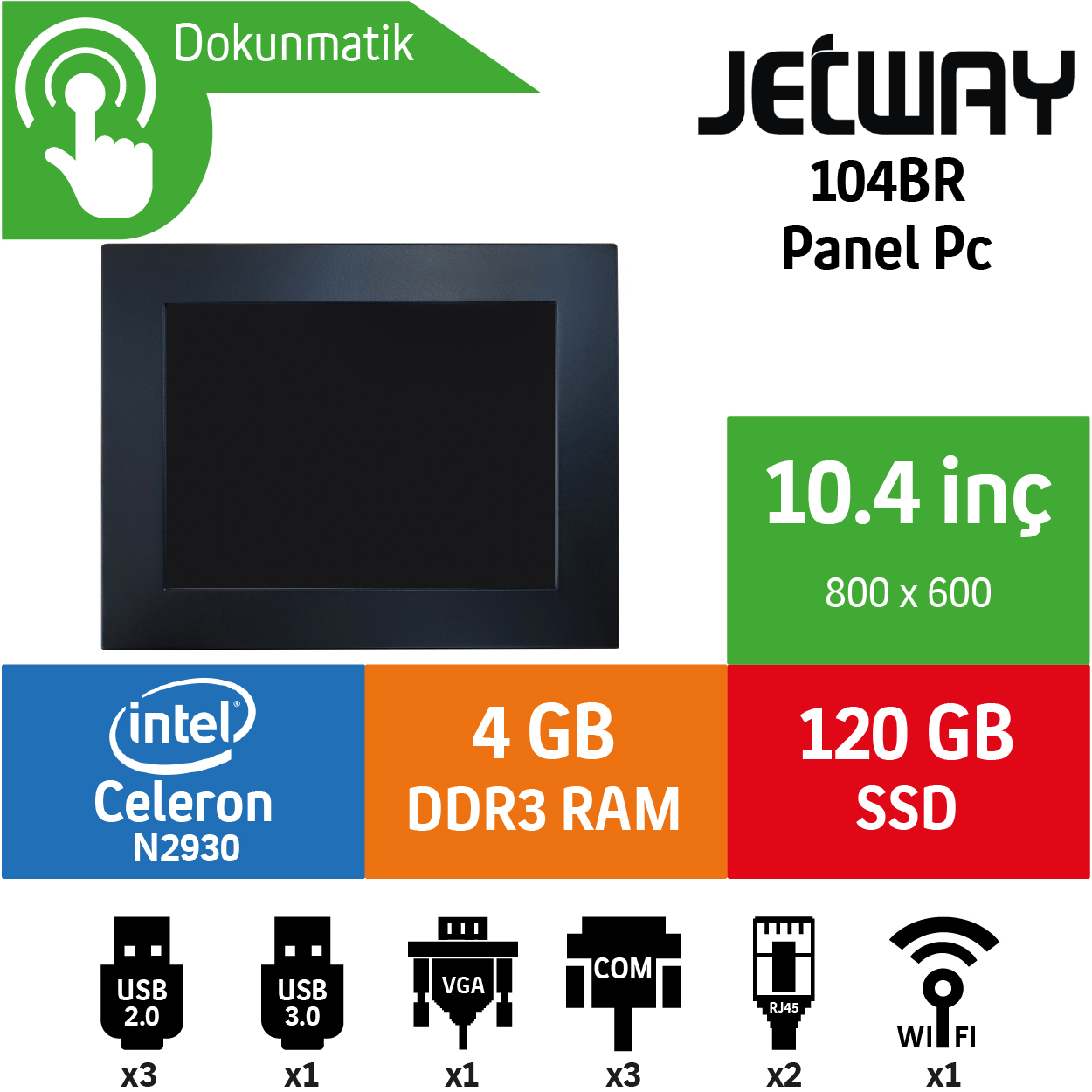

Jetway 104BR Intel Celeron N2930 4GB 120GB SSD Freedos 10.4" Endüstriyel Panel Pc

 Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 10.4″ With LED Backlight

Brightness (cd/m²)

– 230 nits

Display Color

– 262K

Resolution

– 800 x600 @ 60Hz

Viewing Angle (H/V)

– 160°/130°

Pixel Pitch

– 0.264 x 0.264 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 500:1

Operating Temperature

– -20 ~70° C

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 211.58 x 158.75mm ±0.2mm

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Operating Force

– ≦ 80g

Knock test

– 10,000,000 times keystrokes

Operating Temperature

– -20 ~70° C

 Main System

CPU

– Intel® Bay Trail-M N2930 1.83GHz/QC

RAM

– 4G 1333MHz DDR3L DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1 * 2.5” SATA HDD (SATA-2)
– 1 * M-SATA connector

Watchdog Timer

– 256 levels, 0~255 sec.

Wifi / BT

– 1* 802.11 ac + BT 4.0 (Wifi model)

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

 I/O Connector

I/O Ports and Switches

– 1 * USB3.0
– 3 * USB2.0
– 1 * RS232
– 2 * RS232/422/485
– 1 * CRT
– 2 * LAN (Intel® I211AT Gigabit LAN)
– 1 * Line-out
– 1 * Euro terminal block 9~24V DC input

 Expansion Interface

Expansion

– 1 * PCI-E mini card for wifi or 3G

 Power

Power Input

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 9~24VDC with over current protection fuse

Power Consumption

– 23W

 Dimensions

Case Dimensions

– 284.0*230.0*37.0mm

 Certifications

Certifications

– CE, FCC, IP65

 Environment

Temperature

– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: -10 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 70° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms
